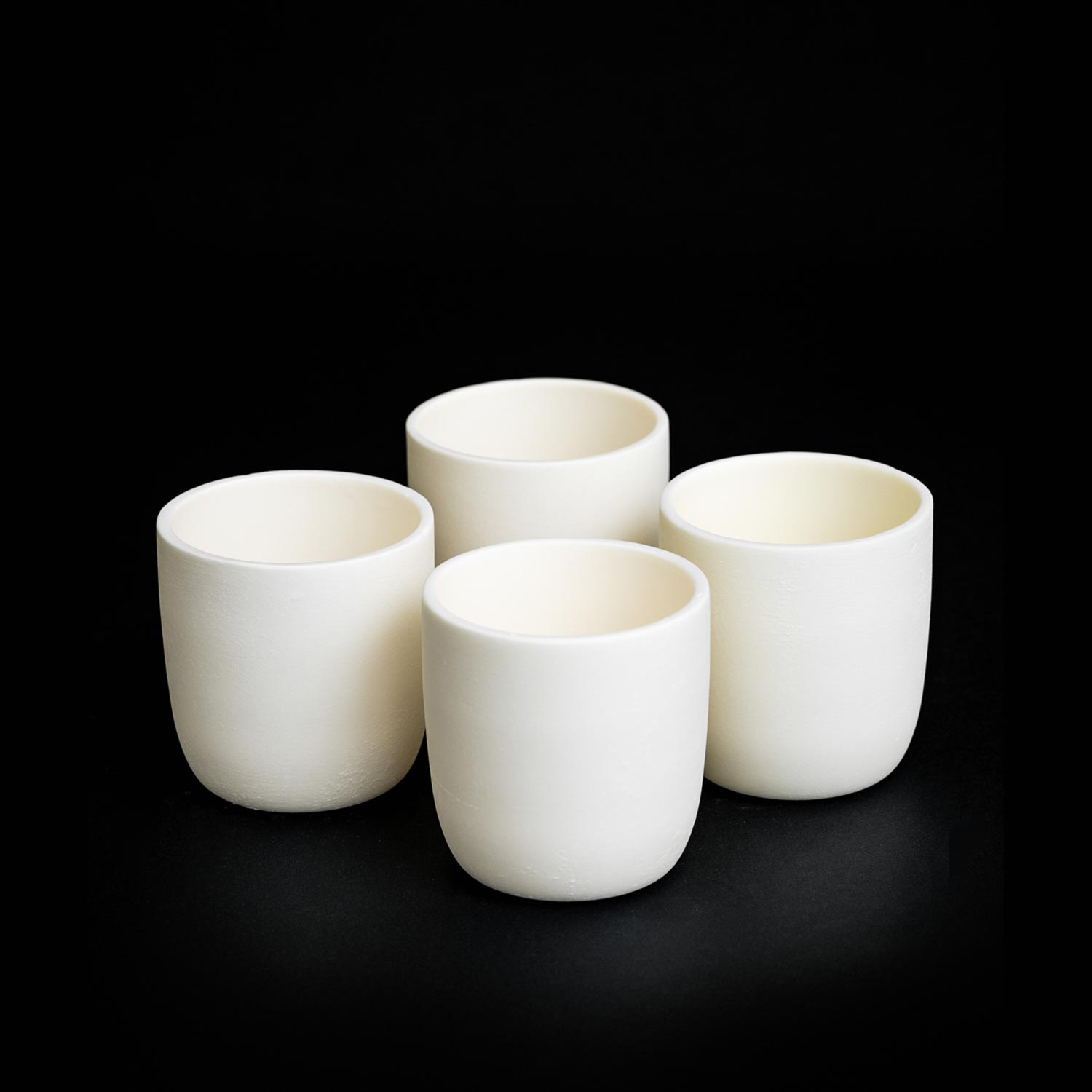

CL60 Classic Alumina Crucible 115ml

From: £54.00 excl. Tax

CL60 Classic crucible, conical shaped in recrystallised Alumina (99.8%).

Capacity (ml)	Approx. OD (mm)	Approx. ID (mm)	Height (mm)
115	59	54	61

Max working temperature of 1750°C.

This product is manufactured by Almath in the United Kingdom.

Pack Sizes

Do You Require Lids?

Clear

Add to quote

SKU: CL60 Category: Classic Tag: Alumina

Description

CL60 Classic crucible, conical shaped in recrystallised Alumina (99.8%).

Capacity (ml)	Approx. OD (mm)	Approx. ID (mm)	Height (mm)
115	59	54	61

Max working temperature of 1750°C.

This product is manufactured by Almath in the United Kingdom.

View full range of Classic Crucibles.

Almath Crucibles offer a variety of alumina products, including Alumina Crucibles, alumina tubes and alumina plates. We are also able to produce alumina furnaceware. Our CL60 has a maximum operating temperature of 1750°C, making them ideal for high temperature applications.

Our high purity alumina (Al₂O₃ content > 99%) ceramics are purpose built to perform across a wide range of high temperature applications. We use recrystallized alumina in the production of our crucibles as the material offers impressive thermal shock resistance, this is due to the larger grain size (up to 200mm is advantageous).

Our high purity alumina shows considerable resistance to chemical attack due to the lack of glassy phases that tend to determine corrosion resistance.

The electrical and dielectrical properties of the material generally improve with increased purity. Electrical resistance is greatest and dielectrical loss factor is lowest in materials of highest alumina content.

High purity Alumina produces a dense and essentially single-phase ceramic on sintering. Grain growth during sintering can be controlled by small additions of MgO up to 0.05%. Our product usually contains a small amount of closed porosity but this can be kept below 0.5% using modern firing techniques.

Additional information

Weight	0.2 kg
Material	Alumina
Sectors	Chemicals
Capacity (ml)	115
External Diameter (mm)	58.5
External Height (mm)	61
Internal Diameter (mm)	53.6
Internal Height (mm)	58.3
Wall Thickness (mm)	2.7
Pack Sizes	Single, 5 Pcs, 10 Pcs
Do You Require Lids?	No, Yes

Technical Drawing
