EBEAM40ZTA Electron Beam ZTA Crucible

Name: EBEAM40ZTA Electron Beam ZTA Crucible - Almath Crucibles Ltd.
SKU: EBEAM40ZTA
Price: 202.00 GBP
Availability: BackOrder

£202.00 excl. Tax

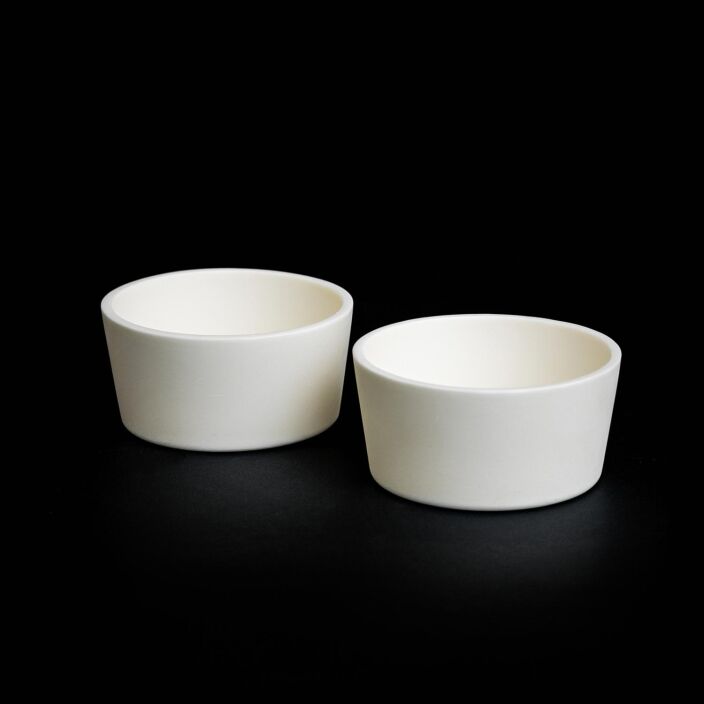

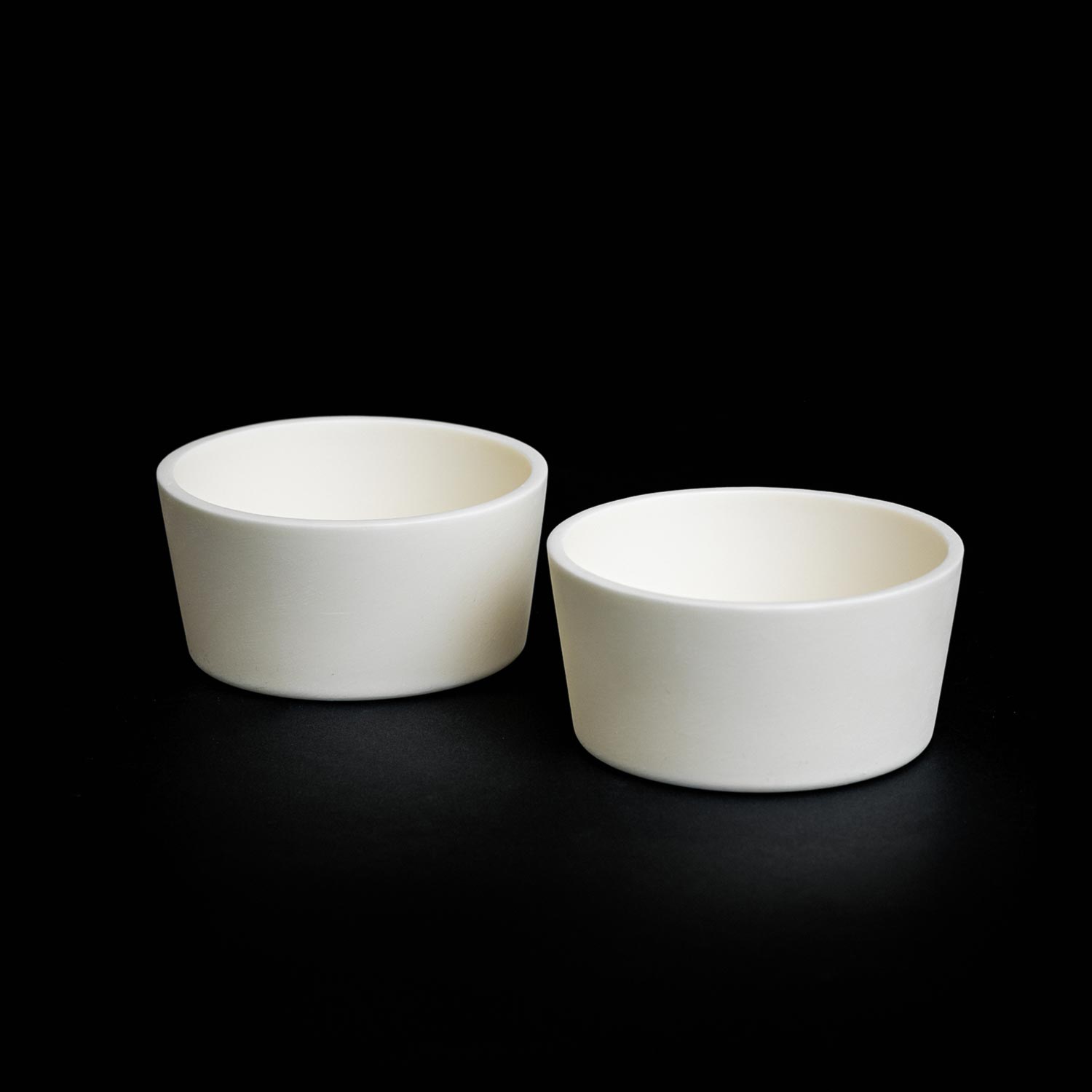

EBEAM40ZTA Electron Beam Crucible. This product has a flat bottom, tapered walls and a shallow height. Made in Zirconia Toughened Alumina.

Available on back-order

Add to quote

SKU: EBEAM40ZTA Category: Ebeam Tag: ZTA

Description

EBEAM40ZTA Electron Beam Crucible. This product has a flat bottom, tapered walls and a shallow height. Made in Zirconia Toughened Alumina.

Pocket Volume (mm)	Outside Diameter (mm)	External Height (mm)	Angle
40cc	51.56	25.9	15

This product is manufactured by Almath in the United Kingdom.

View the full range of ebeam crucibles here.

Zirconia-toughened alumina (ZTA) shows a considerable improvement in strength and more importantly toughness. As a result, these ceramics can be used in areas of extreme mechanical abrasion and thermal shock.

Like us on Facebook.

Additional information

Material	ZTA
External Diameter (mm)	50.7
External Height (mm)	25.4
Capacity (ml)	39.3
Do You Require Lids?	No, Yes

Technical Drawing
