Sale!

PBA12 Point Bottom Alumina Crucible

Name: PBA12 Point Bottom Alumina Crucible - Almath Crucibles Ltd.
SKU: PBA12
Availability: InStock

From: £27.00 excl. Tax

PBA12 Point Bottom Crucible. Available in recrystallised Alumina (99.8%) or Yttria Stabilised Zirconia.

pack sizes

Clear

Add to quote

SKU: PBA12 Category: Point Bottom Tag: Alumina

Description

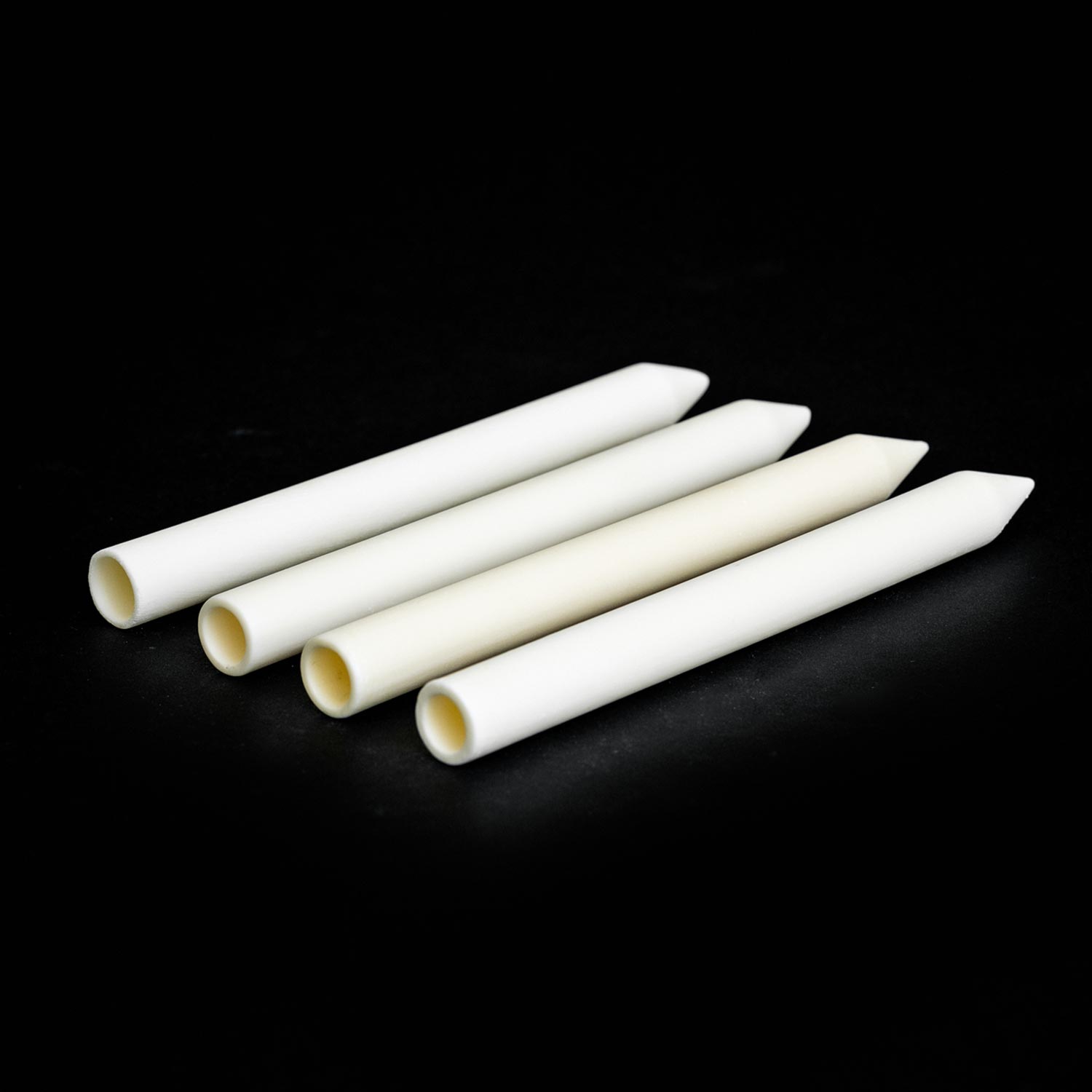

PBA12 Point Bottom Crucible. This product has a pointed end and straight sides, they are primarily used in crystal growing applications. Made in recrystallized Alumina (99.8%).

External Height of Cylinder (mm)	External Height Overall (mm)	Internal Height Overall (mm)	External OD at Bottom (mm)	Internal ID at Top (mm)	External OD at Top (mm)	Wall Thickness (mm)
122	138	134	13.1	10.6	13.6	1.5

View the full range of point bottom crucibles here.

Max working temperature of 1750°C.

These products are manufactured by Almath in the United Kingdom.

Like us on Facebook.

Additional information

Weight	0.04 kg
Material	Alumina
External Diameter (mm)	13.6
External Height (mm)	138
Internal Diameter (mm)	10.3
Wall Thickness (mm)	1.5
Capacity (ml)	11
Internal Height (mm)	131
pack sizes	Single, 5 OFF, 10 OFF

Technical Drawing
