Sale!

PBA15 Point Bottom Alumina Crucible

Name: PBA15 Point Bottom Alumina Crucible - Almath Crucibles Ltd.
SKU: PBA15
Availability: InStock

From: £38.00 excl. Tax

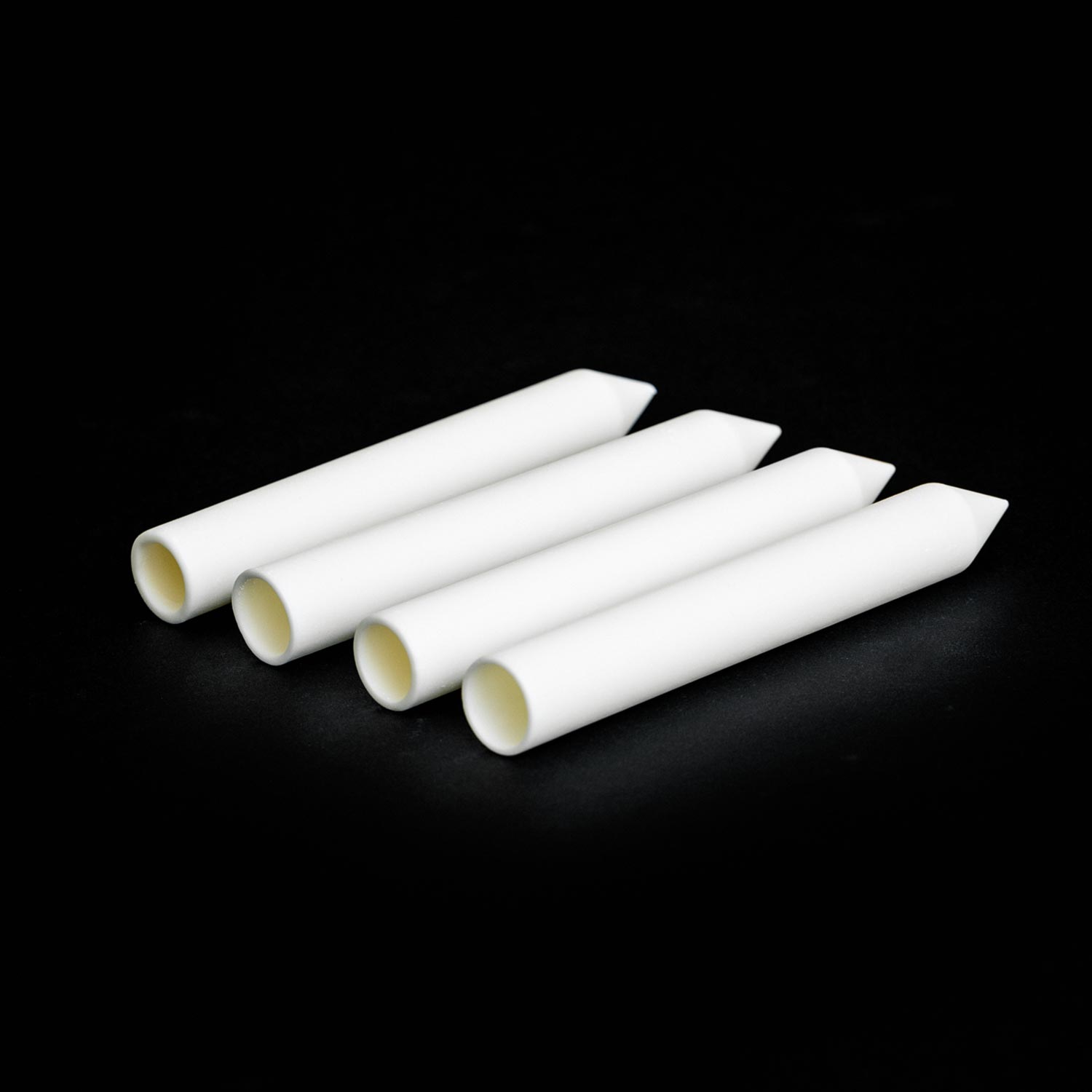

PBA15 Point Bottom Crucible. Available in recrystallised Alumina (99.8%) or Yttria Stabilised Zirconia.

pack sizes

Clear

Add to quote

SKU: PBA15 Category: Point Bottom Tag: Alumina

Description

PBA15 Point Bottom Crucible. This product has a pointed end and straight sides, they are primarily used in crystal growing applications. Made in recrystallised Alumina (99.8%).

External Height of Cylinder (mm)	External Height Overall (mm)	Internal Height Overall (mm)	External OD at Bottom (mm)	Internal ID at Top (mm)	External OD at Top (mm)	Wall Thickness (mm)
90	104	100.5	14.2	11.3	14.5	1.6

View the full range of point bottom crucibles here.

Max working temperature of 1750°C.

These products are manufactured by Almath in the United Kingdom.

Like us on Facebook.

Additional information

Weight	0.04 kg
Material	Alumina
External Diameter (mm)	14.5
External Height (mm)	104
Internal Diameter (mm)	11
Wall Thickness (mm)	1.6
Capacity (ml)	9
Internal Height (mm)	89
pack sizes	Single, 5 OFF, 10 OFF

Technical Drawing
