£49.00 excl. Tax
PBZ10 Point Bottom Crucible. Available in Yttria Stabilised Zirconia.

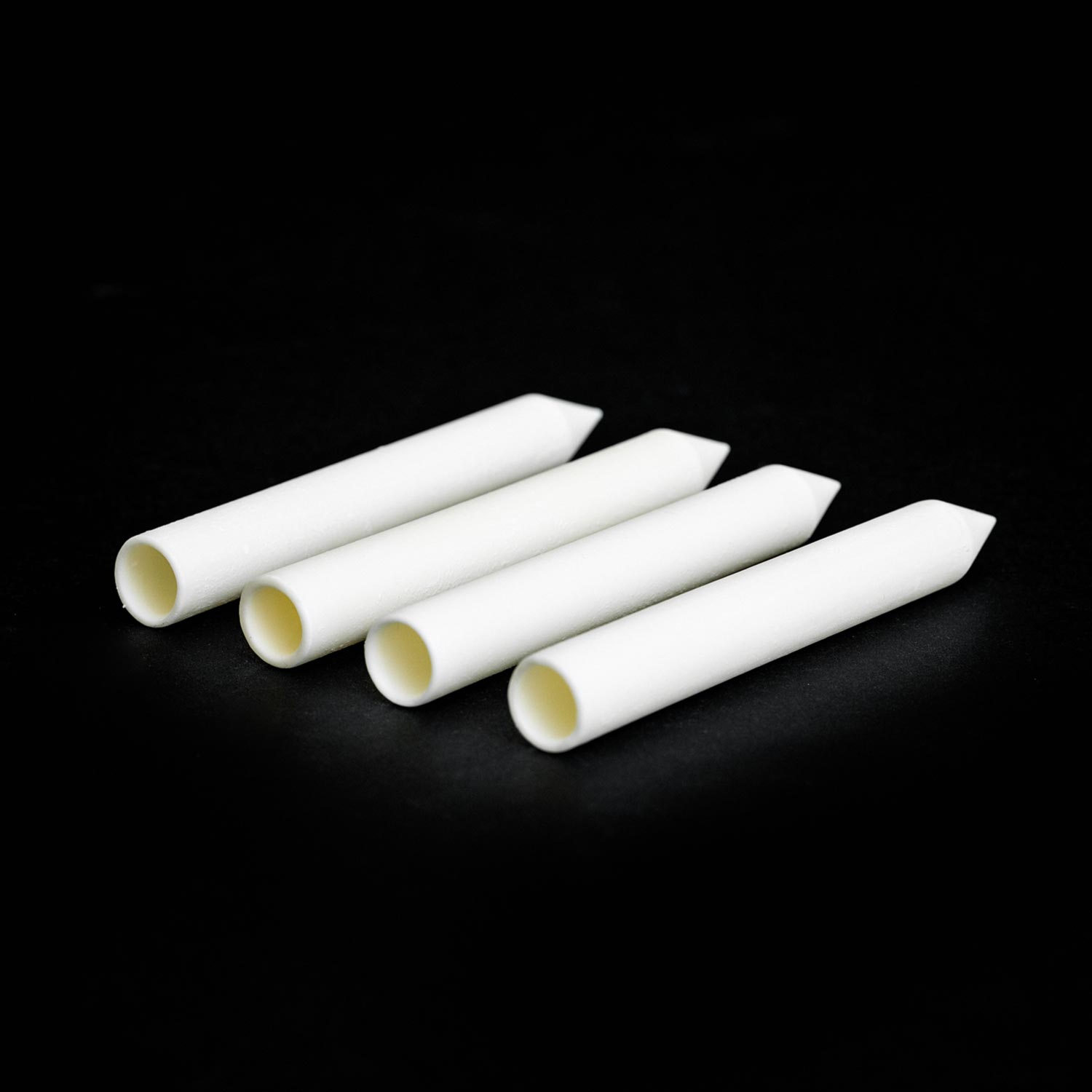

PBZ10 Point Bottom Crucible. This product has a pointed end and straight sides, they are primarily used in crystal growing applications. Made in Yttria Stabilised Zirconia.
| External Height of Cylinder (mm) | External Height Overall (mm) | Internal Height Overall (mm) | External OD at Bottom (mm) | Internal ID at Top (mm) | External OD at Top (mm) | Wall Thickness (mm) |
|---|---|---|---|---|---|---|
| 70 | 81.3 | 69.5 | 10.4 | 7.7 | 10.9 | 1.6 |
View the full range of point bottom crucibles here.
Max working temperature of 2250°C.
These products are manufactured by Almath in the United Kingdom.
| Weight | 0.021 kg |
|---|---|
| Material | |
| External Diameter (mm) | 10.5 |
| External Height (mm) | 78.3 |
| Internal Diameter (mm) | 7.4 |
| Wall Thickness (mm) | 1.5 |
| Capacity (ml) | 3.9 |
| Internal Height (mm) | 67 |
