£76.00 excl. Tax

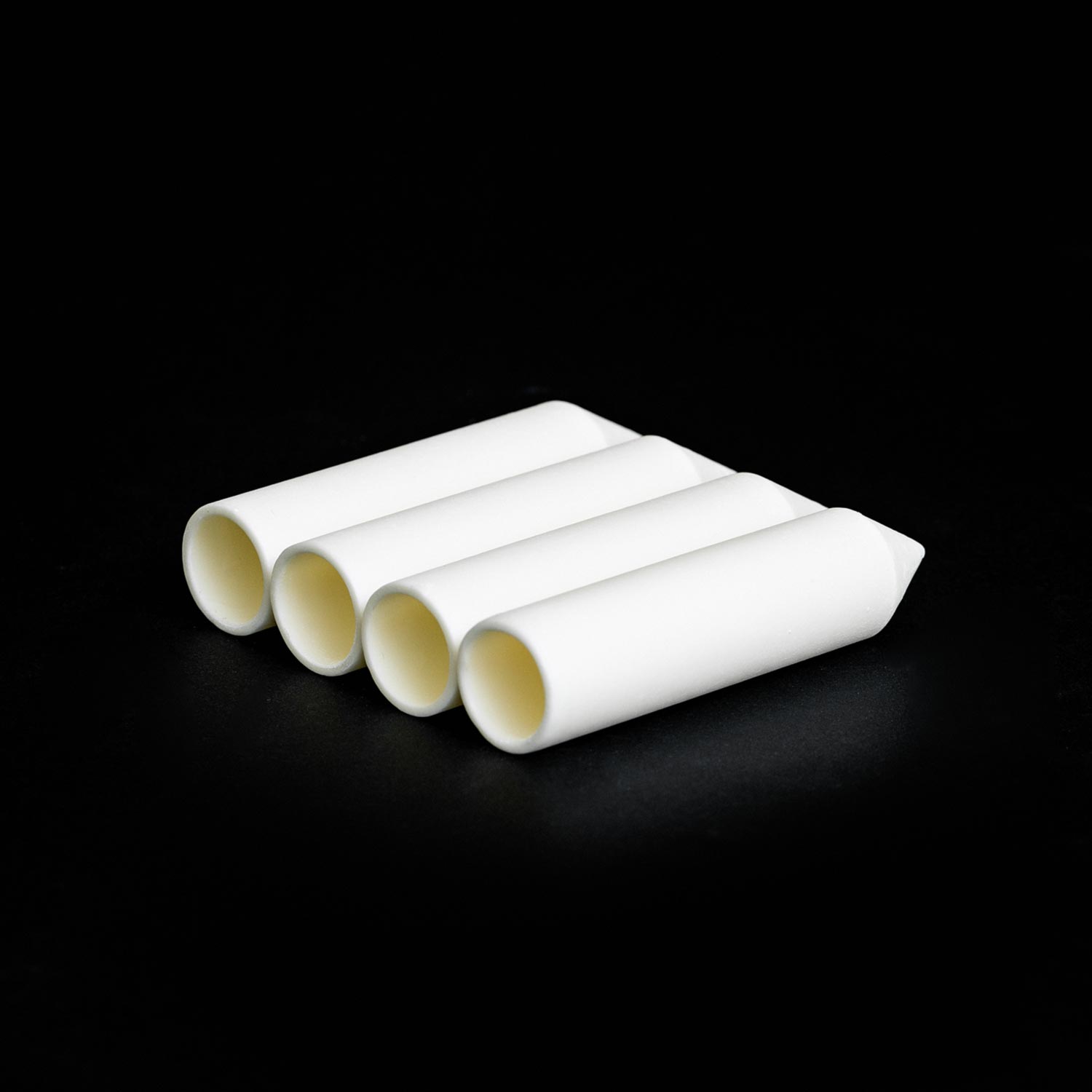

PBZ18 Point Bottom Crucible. Available in Yttria Stabilised Zirconia.
PBZ18 Point Bottom Crucible. This product has a pointed end and straight sides, they are primarily used in crystal growing applications. Made in Yttria Stabilised Zirconia.
| External Height of Cylinder (mm) | External Height Overall (mm) | Internal Height Overall (mm) | External OD at Bottom (mm) | Internal ID at Top (mm) | External OD at Top (mm) | Wall Thickness (mm) |
|---|---|---|---|---|---|---|
| 63.5 | 77.6 | 62.8 | 18 | 14.3 | 18.2 | 1.8 |
View the full range of point bottom crucibles here.
Max working temperature of 2250°C.
These products are manufactured by Almath in the United Kingdom.
| Weight | 0.03 kg |
|---|---|
| Material | |
| External Diameter (mm) | 17.5 |
| External Height (mm) | 74.8 |
| Internal Diameter (mm) | 13.8 |
| Wall Thickness (mm) | 1.7 |
| Capacity (ml) | 10.6 |
| Internal Height (mm) | 60.5 |
