Description

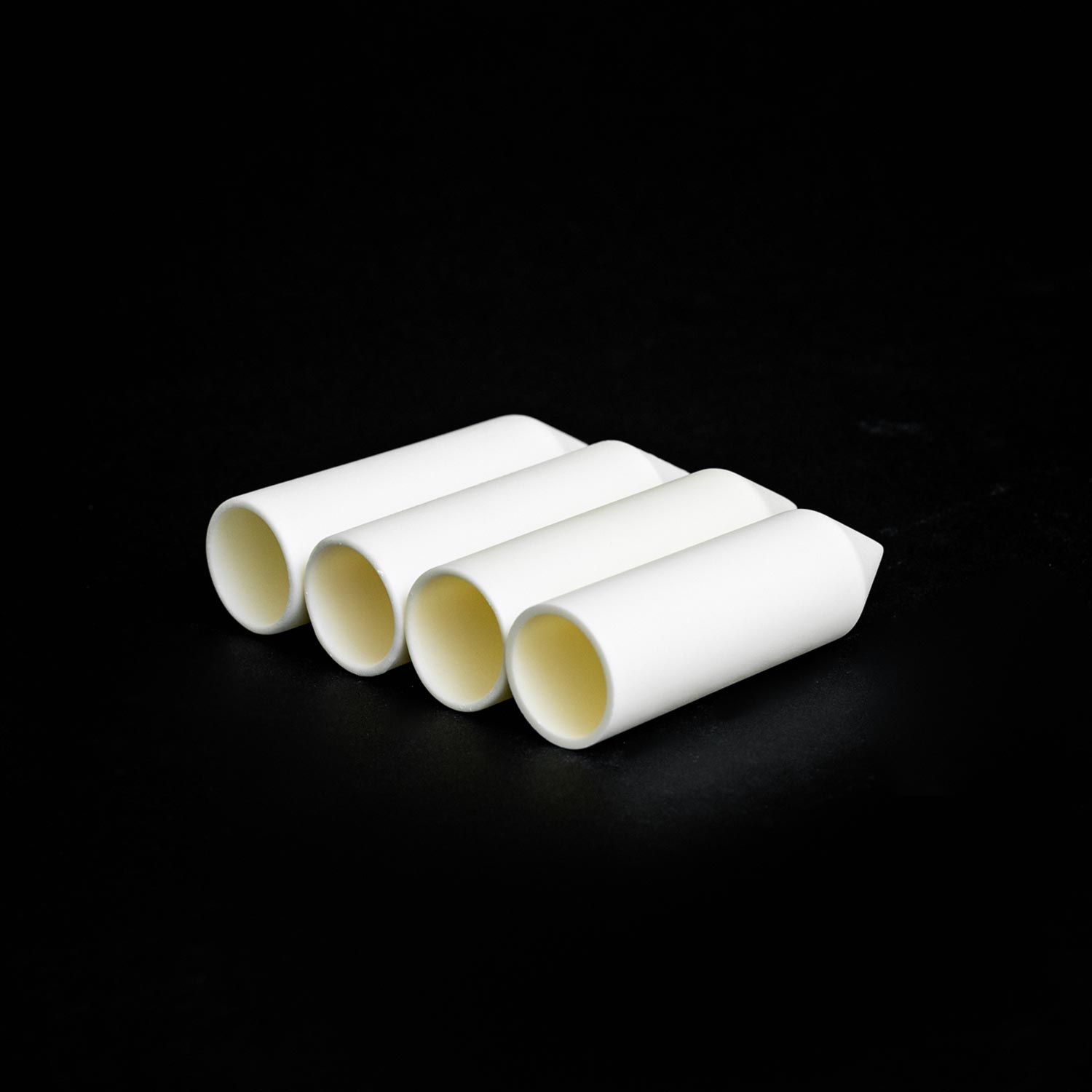

PBZ22 Point Bottom Crucible. This product has a pointed end and straight sides, they are primarily used in crystal growing applications. Made in Yttria Stabilised Zirconia.
| External Height of Cylinder (mm) | External Height Overall (mm) | Internal Height Overall (mm) | External OD at Bottom (mm) | Internal ID at Top (mm) | External OD at Top (mm) | Wall Thickness (mm) |
|---|---|---|---|---|---|---|
| 68.7 | 84.5 | 68.7 | 21.4 | 18.8 | 22.8 | 1.8 |
View the full range of point bottom crucibles here.
Max working temperature of 2250°C.
These products are manufactured by Almath in the United Kingdom.
