Sale!

THP64s Alumina Thermocouple Protection Sheath OD6mm x ID4mm x L300mm

Name: THP64s Alumina Thermocouple Protection Sheath OD6mm x ID4mm x L300mm - Almath Crucibles Ltd.
SKU: THP64S
Availability: InStock

From: £18.00 excl. Tax

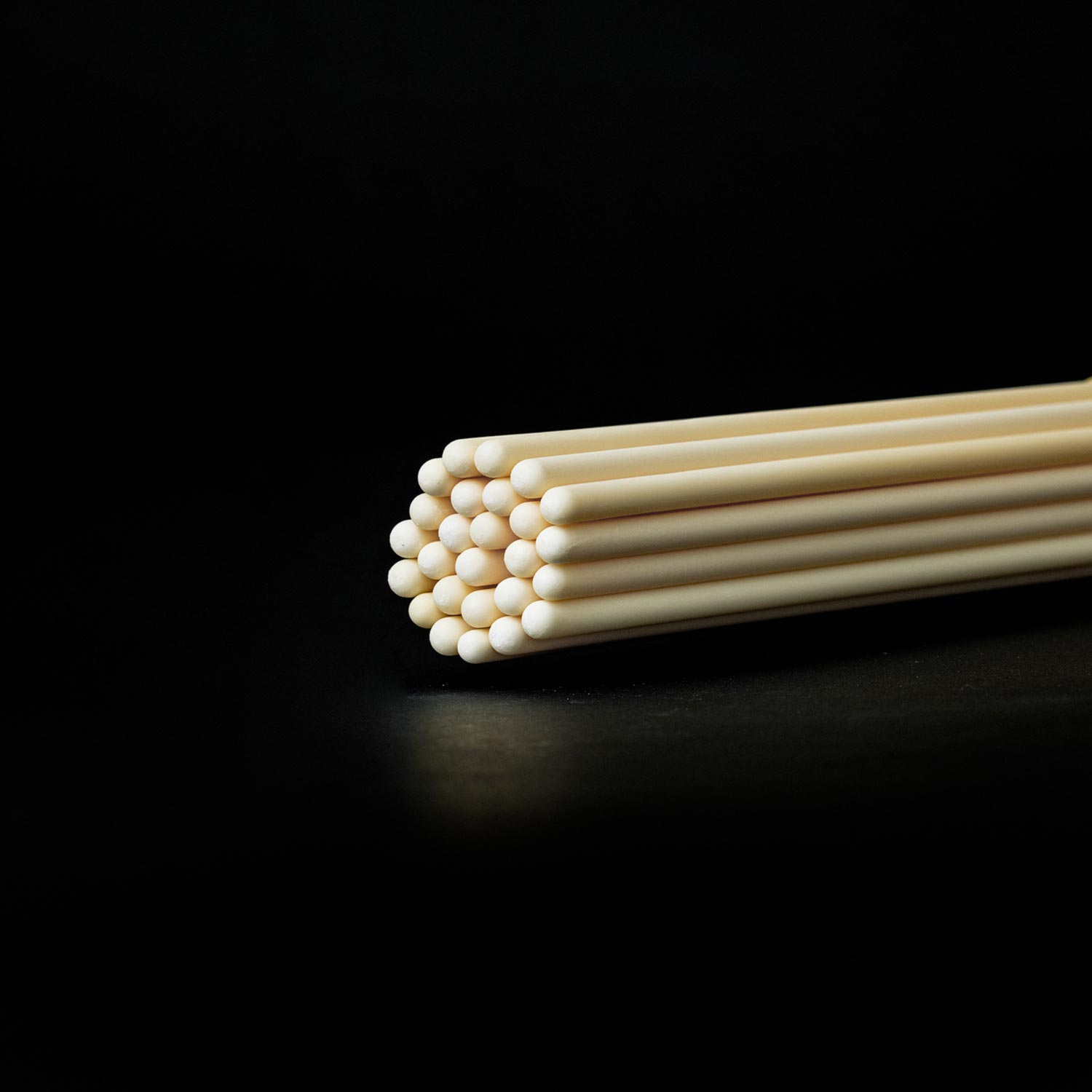

THP64s Alumina Tube OD 6mm x ID 4mm x L 300mm. Single Bore Tube, Closed One End. Made in recrystallized Alumina 99.7%.

pack sizes

Clear

Add to quote

SKU: THP64S Categories: Thermocouple Protection Tubes, Tubes Tag: Alumina

Description

THP64s Tube in recrystallised Alumina (99.7% purity).

Closed One End.

Outside Dimension (mm)	Inner Dimension (mm)	Length (mm)	Open/Closed Ended	Single/Twin Bore
6	4	300	Closed One End	Single

View our entire range of alumina tubes.

Max working temperature of 1750°C.

Almath Crucibles offer a variety of alumina products, including Alumina Crucibles, alumina tubes and alumina plates. We are also able to produce alumina furnaceware. Our THP64 has a maximum operating temperature of 1750°C, making them ideal for high temperature applications.

Our high purity alumina (Al₂O₃ content > 99%) ceramics are purpose built to perform across a wide range of high temperature applications. We use recrystallized alumina in the production of our crucibles as the material offers impressive thermal shock resistance, this is due to the larger grain size (up to 200mm is advantageous).

Our high purity alumina shows considerable resistance to chemical attack due to the lack of glassy phases that tend to determine corrosion resistance.

The electrical and dielectrical properties of the material generally improve with increased purity. Electrical resistance is greatest and dielectrical loss factor is lowest in materials of highest alumina content.

High purity Alumina produces a dense and essentially single-phase ceramic on sintering. Grain growth during sintering can be controlled by small additions of MgO up to 0.05%. Our product usually contains a small amount of closed porosity but this can be kept below 0.5% using modern firing techniques.

Connect with us on Facebook.

Additional information

Weight	2 kg
Dimensions	1000 × 10 × 10 mm
Material	Alumina
External Diameter (mm)	6
External Length (mm)	300
Internal Diameter (mm)	4
pack sizes	Single, 5 OFF, 10 OFF
