CC68ZTA Cylindrical ZTA Crucible 200ml

Name: CC68ZTA Cylindrical ZTA Crucible 200ml - Almath Crucibles Ltd.
SKU: CC68ZTA
Availability: InStock

From: £102.00 excl. Tax

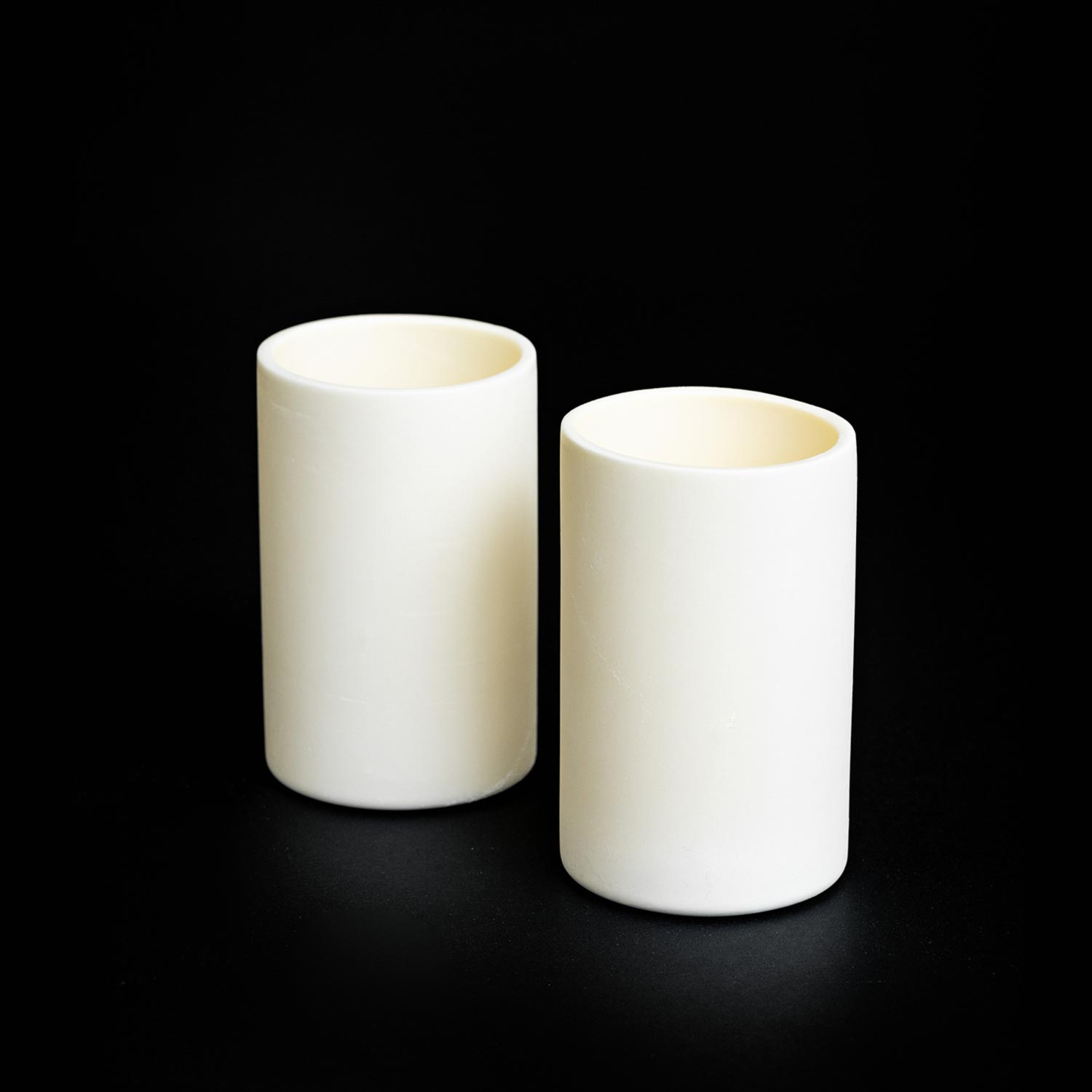

CC68ZTA Cylindrical crucible. This product has a flat bottom, straight sides. Made in Zirconia Toughened Alumina.

Do You Require Lids?

Clear

Add to quote

SKU: CC68ZTA Category: Cylindrical Tag: ZTA

Description

CC68ZTA Cylindrical crucible. This product has a flat bottom, straight sides. Made in Zirconia Toughened Alumina.

Capacity (ml)	Approx. OD (mm)	Approx. ID (mm)	Height (mm)
200	68	62	71

This product is manufactured by Almath in the United Kingdom.

View full range of Cylindrical Crucibles.

Zirconia-toughened alumina (ZTA) shows a considerable improvement in strength and more importantly toughness. As a result, these ceramics can be used in areas of extreme mechanical abrasion and thermal shock.

Additional information

Weight	0.44 kg
Material	ZTA
External Diameter (mm)	66.8
External Height (mm)	69.7
Internal Diameter (mm)	61.8
Wall Thickness (mm)	2.3
Capacity (ml)	196.3
Internal Height (mm)	66.8
Do You Require Lids?	No, Yes

Technical Drawing
